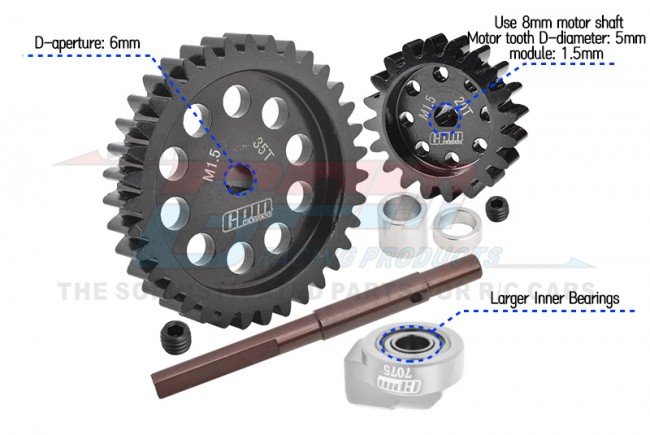

GPM TXM2035TS Precision 40Cr Spur and Motor Gear Set for Traxxas XRT 8S  [TXM2035TS]

Technical overview of GPM TXM2035TS for TRAXXAS XRT 8S

This GPM TXM2035TS ensemble pairs a 35T spur with a 20T motor gear manufactured from 40Cr carbon steel, offering improved material hardness for sustained torque loads. The included aluminium 7075 mounting bracket establishes a three-point support scheme that increases rigidity compared with the factory two-point mount, helping to maintain consistent gear mesh under load. Attention to tooth dimensions and component tolerances ensures reduced backlash and better power transmission for high demand running.

Packing Includes

• Motor gear 20T - 1pc
• 5x5 Screw shaft - 1pc
• Spur gear 35T M1.5 - 1pc
• Cush drive input shaft - 1pc
• Bearing 6x13x5 - 1pc
• Shim 6x8x3.5 - 1pc
• Shim 6x8x7.5 - 1pc
• Set screws 5x5 - 1pc
• Aluminum 7075 mount - 1pc
