TRAXXAS Slash 4X4 Precision CNC Aluminium Gear Adapter and 32-Pitch 54T/16T Set SLA155416TLG by GPM  [SLA155416TLG]

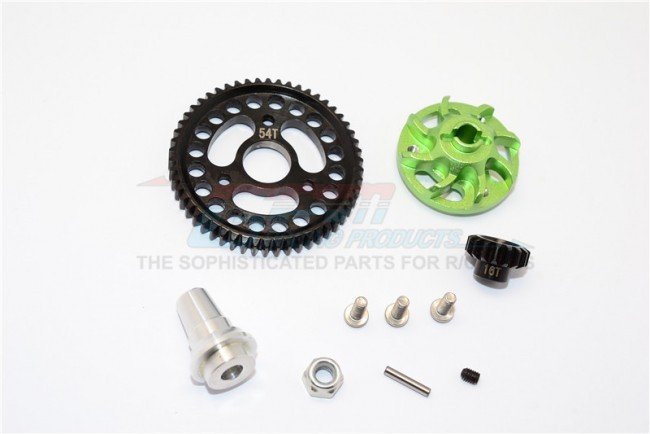

TRAXXAS SLASH 4X4 LOW-CG Aluminium Gear Adapter With Steel 32 Pitch 54T Spur Gear & 16T Motor Gear - 1set (For 68086-21 Version) - GPM SLA155416TLG
Price:
USD$32.90
Brand:
GPM
Model:
SLA155416TLG
GTIN:
4894538259001
Please kindly input your name and email address, we will inform you once we have the restocking.
Write a review
alt="TRAXXAS SLASH 4X4 LOW-CG Aluminium Gear Adapter With Steel 32 Pitch 54T Spur Gear & 16T Motor Gear - 1set (For 68086-21 Version) - GPM SLA155416TLG" title="TRAXXAS SLASH 4X4 LOW-CG Aluminium Gear Adapter With Steel 32 Pitch 54T Spur Gear & 16T Motor Gear - 1set (For 68086-21 Version) - GPM SLA155416TLG"
alt="TRAXXAS SLASH 4X4 LOW-CG Aluminium Gear Adapter With Steel 32 Pitch 54T Spur Gear & 16T Motor Gear - 1set (For 68086-21 Version) - GPM SLA155416TLG" title="TRAXXAS SLASH 4X4 LOW-CG Aluminium Gear Adapter With Steel 32 Pitch 54T Spur Gear & 16T Motor Gear - 1set (For 68086-21 Version) - GPM SLA155416TLG"
alt="TRAXXAS SLASH 4X4 LOW-CG Aluminium Gear Adapter With Steel 32 Pitch 54T Spur Gear & 16T Motor Gear - 1set (For 68086-21 Version) - GPM SLA155416TLG" title="TRAXXAS SLASH 4X4 LOW-CG Aluminium Gear Adapter With Steel 32 Pitch 54T Spur Gear & 16T Motor Gear - 1set (For 68086-21 Version) - GPM SLA155416TLG"
alt="TRAXXAS SLASH 4X4 LOW-CG Aluminium Gear Adapter With Steel 32 Pitch 54T Spur Gear & 16T Motor Gear - 1set (For 68086-21 Version) - GPM SLA155416TLG" title="TRAXXAS SLASH 4X4 LOW-CG Aluminium Gear Adapter With Steel 32 Pitch 54T Spur Gear & 16T Motor Gear - 1set (For 68086-21 Version) - GPM SLA155416TLG"
alt="TRAXXAS SLASH 4X4 LOW-CG Aluminium Gear Adapter With Steel 32 Pitch 54T Spur Gear & 16T Motor Gear - 1set (For 68086-21 Version) - GPM SLA155416TLG" title="TRAXXAS SLASH 4X4 LOW-CG Aluminium Gear Adapter With Steel 32 Pitch 54T Spur Gear & 16T Motor Gear - 1set (For 68086-21 Version) - GPM SLA155416TLG"
alt="TRAXXAS SLASH 4X4 LOW-CG Aluminium Gear Adapter With Steel 32 Pitch 54T Spur Gear & 16T Motor Gear - 1set (For 68086-21 Version) - GPM SLA155416TLG" title="TRAXXAS SLASH 4X4 LOW-CG Aluminium Gear Adapter With Steel 32 Pitch 54T Spur Gear & 16T Motor Gear - 1set (For 68086-21 Version) - GPM SLA155416TLG"
alt="TRAXXAS SLASH 4X4 LOW-CG Aluminium Gear Adapter With Steel 32 Pitch 54T Spur Gear & 16T Motor Gear - 1set (For 68086-21 Version) - GPM SLA155416TLG" title="TRAXXAS SLASH 4X4 LOW-CG Aluminium Gear Adapter With Steel 32 Pitch 54T Spur Gear & 16T Motor Gear - 1set (For 68086-21 Version) - GPM SLA155416TLG"
alt="TRAXXAS SLASH 4X4 LOW-CG Aluminium Gear Adapter With Steel 32 Pitch 54T Spur Gear & 16T Motor Gear - 1set (For 68086-21 Version) - GPM SLA155416TLG" title="TRAXXAS SLASH 4X4 LOW-CG Aluminium Gear Adapter With Steel 32 Pitch 54T Spur Gear & 16T Motor Gear - 1set (For 68086-21 Version) - GPM SLA155416TLG"
alt="TRAXXAS SLASH 4X4 LOW-CG Aluminium Gear Adapter With Steel 32 Pitch 54T Spur Gear & 16T Motor Gear - 1set (For 68086-21 Version) - GPM SLA155416TLG" title="TRAXXAS SLASH 4X4 LOW-CG Aluminium Gear Adapter With Steel 32 Pitch 54T Spur Gear & 16T Motor Gear - 1set (For 68086-21 Version) - GPM SLA155416TLG"

Precision CNC aluminium adapter engineered for Slash 4X4 Low-CG

The SLA155416TLG is a precision-machined aluminium adapter kit designed for the TRAXXAS Slash 4X4 Low-CG chassis, pairing a CNC-finished aluminium mount with hardened steel 32-pitch gears. The set is supplied with a 54T spur and a 16T motor gear to deliver consistent mesh and reliable torque transfer under varied load conditions.

Engineering notes: the aluminium adapter increases lateral support for the spur compared to plastic housings, reducing deflection under torque. Hardened steel gears extend service life under high-load running. The fitted 54T spur and 16T pinion result in a nominal 54:16 ratio (1:3.375), and the specification lists alternative pinion sizes and their calculated ratios to aid final drive selection.

Service and installation: inspect motor mount datum and ensure precise pinion seating before tightening. Establish correct backlash and verify smooth engagement across the full rotation to avoid premature tooth wear. This kit is produced to match the 68086-21 chassis geometry; confirm vehicle version prior to installation.

Specifications

  • Item: Aluminium gear adapter with steel spur and motor gear set
  • Material: Aluminium adapter, hardened steel gears
  • Model Number: SLA155416TLG
  • Compatibility: For 68086-21 version
  • Gear Details: 32 pitch, 54T spur, 16T motor gear, example ratios listed: 54T/15T=1:3.600, 54T/16T=1:3.375, 54T/17T=1:3.176, 54T/18T=1:3.000, 54T/19T=1:2.842, 54T/20T=1:2.700

Recommended for hobbyists seeking a durable, low-deflection adapter solution for Slash 4X4 Low-CG drivetrains; select pinion size based on torque delivery, speed targets and thermal headroom.

Which chassis does SLA155416TLG target?

The part is specified for the 68086-21 Slash 4X4 Low-CG configuration. Verify chassis revision numbers before ordering to ensure correct geometry and fitment.

What tolerance checks should I perform on install?

Confirm motor mount squareness and pinion concentricity, set an even small backlash, and rotate through multiple revolutions while observing for binding or uneven contact patterns.

How do pinion changes affect performance?

Altering pinion tooth count changes final drive. Use the listed ratio examples to model acceleration and top speed impacts and ensure the motor and ESC remain within thermal limits.

Are additional mounting parts required?

The kit supplies the adapter and gears only. Reuse bearings and mounting hardware when serviceable; replace worn components to maintain alignment and durability.
