GPM TRAXXAS X-Maxx Precision Suspension and Steering TXM54551921  [TXM54551921]

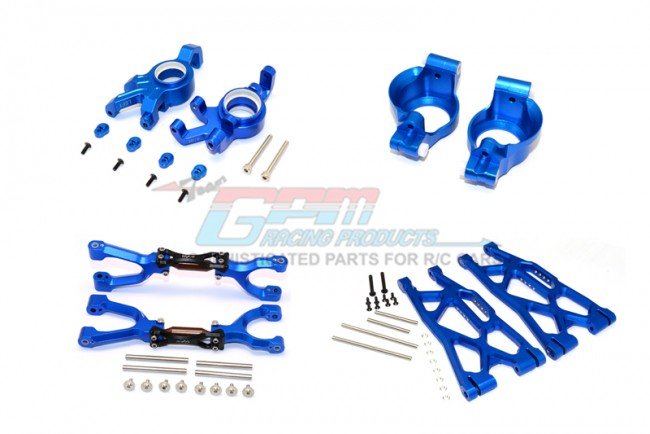

TRAXXAS 1/8 X-MAXX Aluminum Front Upper+Lower Arms+C Hubs+Kncukle Arms set For X-Maxx - 52pc set - GPM TXM54551921
Price:
USD$221.90
Brand:
GPM
Model:
TXM54551921
GTIN:
4894538321401
Please kindly input your name and email address, we will inform you once we have the restocking.
Write a review
alt="TRAXXAS 1/8 X-MAXX Aluminum Front Upper+Lower Arms+C Hubs+Kncukle Arms set For X-Maxx - 52pc set - GPM TXM54551921" title="TRAXXAS 1/8 X-MAXX Aluminum Front Upper+Lower Arms+C Hubs+Kncukle Arms set For X-Maxx - 52pc set - GPM TXM54551921"
alt="TRAXXAS 1/8 X-MAXX Aluminum Front Upper+Lower Arms+C Hubs+Kncukle Arms set For X-Maxx - 52pc set - GPM TXM54551921" title="TRAXXAS 1/8 X-MAXX Aluminum Front Upper+Lower Arms+C Hubs+Kncukle Arms set For X-Maxx - 52pc set - GPM TXM54551921"
alt="TRAXXAS 1/8 X-MAXX Aluminum Front Upper+Lower Arms+C Hubs+Kncukle Arms set For X-Maxx - 52pc set - GPM TXM54551921" title="TRAXXAS 1/8 X-MAXX Aluminum Front Upper+Lower Arms+C Hubs+Kncukle Arms set For X-Maxx - 52pc set - GPM TXM54551921"
alt="TRAXXAS 1/8 X-MAXX Aluminum Front Upper+Lower Arms+C Hubs+Kncukle Arms set For X-Maxx - 52pc set - GPM TXM54551921" title="TRAXXAS 1/8 X-MAXX Aluminum Front Upper+Lower Arms+C Hubs+Kncukle Arms set For X-Maxx - 52pc set - GPM TXM54551921"
alt="TRAXXAS 1/8 X-MAXX Aluminum Front Upper+Lower Arms+C Hubs+Kncukle Arms set For X-Maxx - 52pc set - GPM TXM54551921" title="TRAXXAS 1/8 X-MAXX Aluminum Front Upper+Lower Arms+C Hubs+Kncukle Arms set For X-Maxx - 52pc set - GPM TXM54551921"
alt="TRAXXAS 1/8 X-MAXX Aluminum Front Upper+Lower Arms+C Hubs+Kncukle Arms set For X-Maxx - 52pc set - GPM TXM54551921" title="TRAXXAS 1/8 X-MAXX Aluminum Front Upper+Lower Arms+C Hubs+Kncukle Arms set For X-Maxx - 52pc set - GPM TXM54551921"
alt="TRAXXAS 1/8 X-MAXX Aluminum Front Upper+Lower Arms+C Hubs+Kncukle Arms set For X-Maxx - 52pc set - GPM TXM54551921" title="TRAXXAS 1/8 X-MAXX Aluminum Front Upper+Lower Arms+C Hubs+Kncukle Arms set For X-Maxx - 52pc set - GPM TXM54551921"
alt="TRAXXAS 1/8 X-MAXX Aluminum Front Upper+Lower Arms+C Hubs+Kncukle Arms set For X-Maxx - 52pc set - GPM TXM54551921" title="TRAXXAS 1/8 X-MAXX Aluminum Front Upper+Lower Arms+C Hubs+Kncukle Arms set For X-Maxx - 52pc set - GPM TXM54551921"
alt="TRAXXAS 1/8 X-MAXX Aluminum Front Upper+Lower Arms+C Hubs+Kncukle Arms set For X-Maxx - 52pc set - GPM TXM54551921" title="TRAXXAS 1/8 X-MAXX Aluminum Front Upper+Lower Arms+C Hubs+Kncukle Arms set For X-Maxx - 52pc set - GPM TXM54551921"

Precision Aluminum Front End for TRAXXAS X-Maxx

This GPM kit supplies precision engineered 6061 T6 aluminum front upper and lower arms, C hubs and knuckle arms for the TRAXXAS X-Maxx, targeting improved structural rigidity and more consistent steering behavior under load.

Packing includes

  • Upper Arm 2pcs
  • Lower Arm 2pcs
  • Front Knuckle Arm 6pcs
  • Front C Hub 2pcs
  • 4x48.5 Steel Pin 2pcs
  • 4x85 Steel Pin 2pcs
  • 3x7x2 Shim 8pcs
  • 4x25 Round Head Screw 2pcs
  • 3x8 Flat Head Screw 8pcs
  • 4x37 Stainless Steel Button Head Screw 2pcs
  • 3x8 Round Head Screw 4pcs
  • 4x45 Steel Pin 2pcs
  • 4x43 Steel Pin 2pcs
  • Stainless Steel Large Head Screw 8pcs

Original Name / Part No:

7729+7730+7732+7737

Compatible Models

  • TRAXXAS X-Maxx

Technical Advantages

  • Precision Engineering: Components are produced to tight tolerances from 6061 T6 aluminum to reduce deflection and maintain consistent alignment during dynamic loads.
  • Low Friction Interfaces: POM collars in knuckle arms and C hubs reduce binding at pivot points and support repeatable steering input.
  • Adjustable Linkage: Threaded tie rod design with counter-clockwise threads enables accurate length adjustment for fine tuning of toe and handling characteristics.

Assembly Recommendations

Use calibrated hand tools and check fastener torque to avoid over clamping. Set tie rods to a baseline, then perform controlled test runs to validate steering geometry and wear at pivot points.

What manufacturing material and construction are used?

The kit uses 6061 T6 aluminum for strength to weight balance and includes reinforced steel elements at critical load areas to increase fatigue resistance.

How should I set tie rods for testing?

Begin with symmetrical tie rod lengths and perform short test runs to assess toe and turn-in. Make small, measured changes and record effects to converge on the preferred setup.

What inspection schedule do you recommend?

Inspect POM collars, steel pins and screw heads after the first few sessions and then periodically. Look for play at pivots and signs of fretting at interfaces to maintain performance.
