MG223T/0.5M 40Cr Steel 23T Motor Pinion for RC Repair and Upgrade by GPM  [MG223T/0.5M]

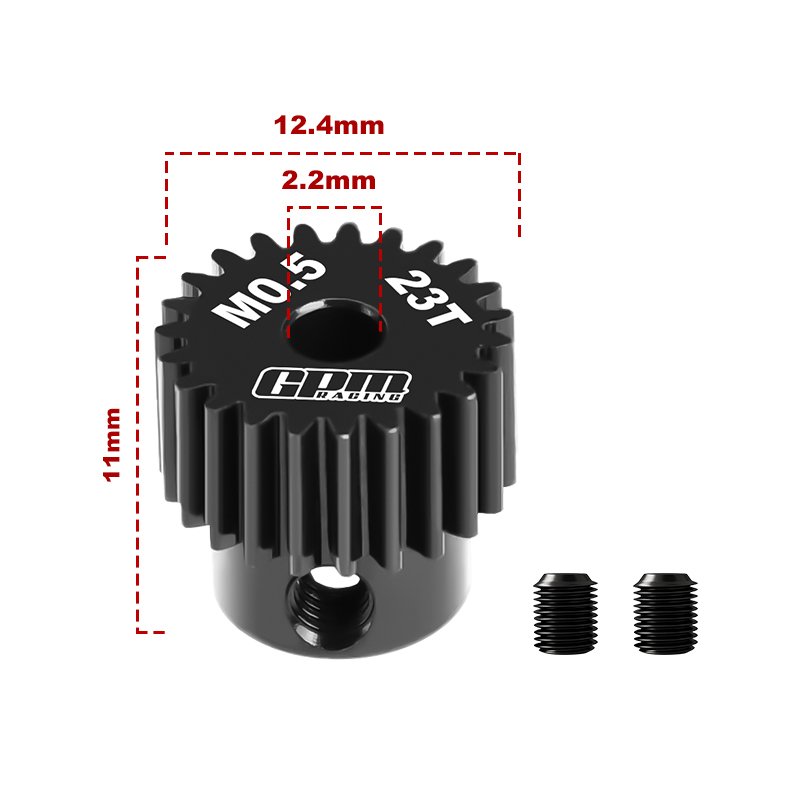

40Cr Steel Motor Gear 23T ( Module:0.5mm, Motor Tooth Diameter:2.2mm) - GPM MG223T/0.5M
Price:
USD$7.90
Brand:
GPM
Model:
MG223T/0.5M
GTIN:
4894538411584
Condition:
Brand New
Write a review

Product overview

The MG223T/0.5M pinion is a 23-tooth motor gear sized for a 0.5mm module and a 2.2mm motor tooth diameter, made from 40Cr steel to provide durable tooth surfaces. The pinion fits motors with a round motor hole and is secured using two 3x3 set screws to maintain axial position.

Installation: check shaft diameter and module compatibility before installation, fit the pinion so teeth mesh evenly with the spur gear, then tighten the two 3x3 set screws evenly. Perform a low-speed check to confirm correct mesh and no binding.

Performance note: as a like-for-like replacement, this pinion helps restore accurate gear mesh and resists accelerated wear compared with worn components. Confirm gear ratios and compatibility with your motor and spur gear before sustained use.

Which motor dimensions must match for fitment?

Confirm the motor accepts a 0.5mm module pinion with a 2.2mm motor tooth diameter and a round hole that can be clamped with two 3x3 set screws for secure fitment.

What is the correct installation sequence?

Slide the pinion onto the motor shaft, align mesh with the spur gear, then tighten both 3x3 set screws evenly. Recheck alignment and run at low throttle to ensure proper engagement.

How does 40Cr affect service life?

40Cr steel increases resistance to wear and helps the pinion retain accurate tooth geometry under normal operating loads, reducing the need for frequent replacement.
