ARRMA MINI KRATON 3S Adjustable 7075-T6 Motor Mount MAKM018 by GPM  [MAKM018]

Adjustable 7075-T6 motor mount for 1/16

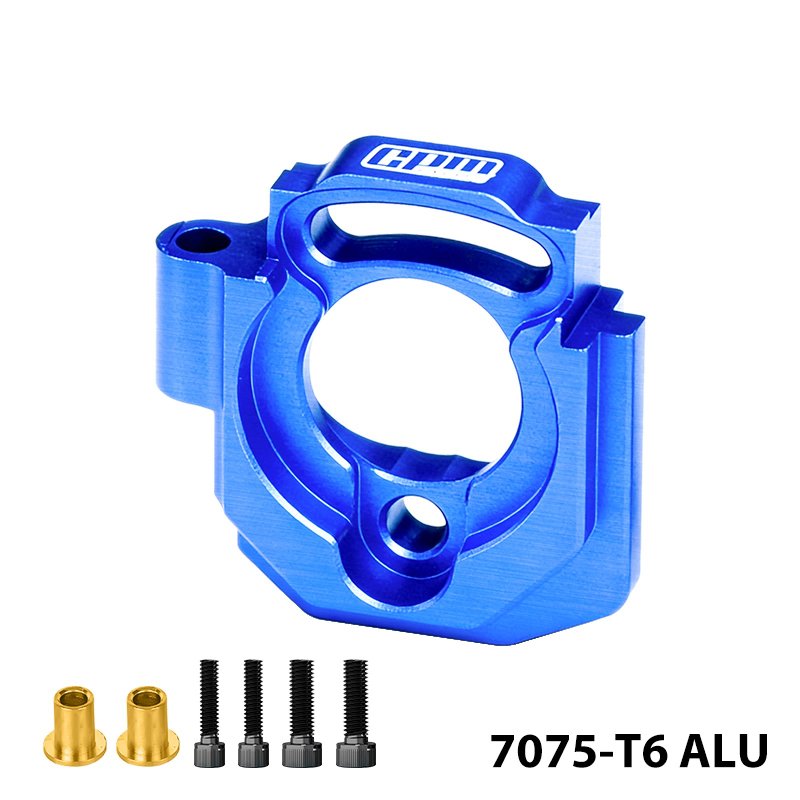

This GPM MAKM018 motor mount is a 1/16-scale RC accessory engineered for ARRMA MINI KRATON 3S platforms. Machined from 7075-T6 aluminum, the part uses an upper/lower and left/right sliding arrangement to allow fine mechanical adjustment of motor position and gear mesh without modifying the chassis. The mount accepts direct M3 fastening and can also use the original M2.5 pattern when fitted with the supplied copper collars and hardware.

Practical setup details are preserved from the original design: the motor hole spacing is 16mm and the mount is compatible with common 2848 motor can sizes. Gear ratio guidance from the factory design is retained, noting that when a 63T spur gear is used, compatible pinion sizes range from 15T to 34T. The assembly replaces factory part number ARA-2673 and includes the hardware needed for installation.
